You are here: Home / Laser Products / Laser Crystal / Yb:YAP

Yb:YAP Chemical formula is Yb:YAlO3,Yttrium orthoaluminate activated with Yb3+ ions doped. It is mostly used in diode pumped high-power ultrafast lasers and the emission spectrum is around 1 um, also it’s scintillators. Yb:YAP is a Infra-red laser crystal, as a result of high threshold of pump, Yb:YAP has a widly used in application. In the continuous-wave state, the upper output power could be generated using the b-cut and c-cut Yb:YAP, and the output power of a-cut is lower. Due to the broad emission bandwidth and high thermal conductivity, Yb:YAP crystal is a gread laser for high power laser operation in CW and plsed regimes.

Yb:YAP crystal–diode pumped high-power ultrafast lasers

Yb:YAP crystal is a potentially useful polarized laser gain medium in laser-diode-pumped solid-state configurations. Yb:YAP crystals is used in large avalanche photodiodes, as the best photosensors are appearanced to be hopeful for future applications in neutrino physics.

Download PDF
Ask for a test Sample FREE

Parameter

Material and Specifications
Orientationa-cut
Clear Aperture>90%
Face Dimensions Tolerance+0/-0,1 mm
Length Tolerance±0,1 mm
Parallelism Error<10 arcsec
Perpendicularity Error<10 arcmin
Protective Chamfers<0,1 mm at 45˚
Surface Quality10-5 S-D
Surface Flatness<λ/10@632,8nm
CoatingsAR(R<0,25%)@978 nm + AR(R<0,15%) @1020-1070 nm on both sides
Laser Induced Damage Threshold>10 J/cm2@1030 nm, 10 ns 0 nm, 10 ns 1030 nm, 10 ns
Optical and Spectral Properties
Absorption Peak Wavelength978 nm
Absorption Cross-Section at Peak6.6×10-20cm2
Absorption Bandwidth at Peak Wavelength4 nm
Laser Wavelength1040 nm
Lifetime of 2F5/2 Energy Level500 us
Emission Cross-section @1040 nm0.5×10-20cm2
Refractive Index @632.8 nm1.96 (//a), 1.94 (//b), 1.97 (//c)
Crystal Structureorthorhombic
Density5.35 g/cm3
Mohs Hardness8.5
Thermal Conductivity11.7 (//a), 10.0 (//b), 13.3 (//c) W/m*K
dn/dT7.7×10-6(//a)K-1,11.7×10-6(//b)K-1
8.3×10-6(//c)K-1
Thermal Expansion Coefficient2.32×10-6(//a)K-1,8.08×10-6(//b)K-1
8.7×10-6(//c)K-1
Typical Doping Level<2 at.%

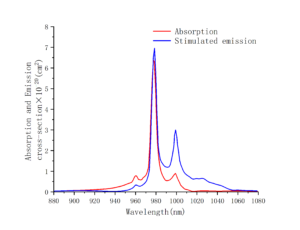

Absorption and Emission Spectrum

Feature
Application
Reference
News
Feature
  • Emission spectrum around 1 um.
  • Infra-red
  • Solid-state laser
  • High power continuous-wave
Application
  • Neutrino detection
  • Photosensors
Reference
Bulk Er:YAP and Er:Yb:YAP optical emission studies for eyesafe laser applications
Proc. of SPIE Vol. 8433 84331Q-2
Characterization and comparison of Yb3+-doped YA1O3 perovskite crystals (Yb:YAP) with Yb3+-doped Y3Al5O12 garnet crystals (Yb:YAG) for laser application
OCIS codes: 140.0140, 140.3580, 140.3615, 160.0160, 300.0300, 300.6250.
Characterization of Yb:YAG and Yb:YAP scintillators by means of LAAPD at temperature around 100 K
Nuclear Instruments and Methods in Physics Research A 496 (2003) page: 385–389
Color centers and charge state recharge in c-irradiated Yb:YAP
Optical Materials 28 (2006) 1377–1380
Comparison of fluorescence spectra of Yb:Y3Al5O12 and Yb:YAlO3 single crystals
Optical Materials 29 (2007) 1662–1666
