1535nm Er Glass Eye-Safe Solid-State Microchip Laser — Ultra-Compact DPSSL for Ranging Finder
The wavelength of 1535nm is just in the position of the human eye and the atmospheric window, so it has been widely concerned in the fields of laser ranging and electronic communication. Er,Yb:glass lasers are most commonly used for laser rangefinders with a low pulse repetition rate (less than 10 Hz). Our eye-safe laser has already been used in ranging finder, and its ranging range is 3-5km with high stability, which is applied in Gun aiming and UAV pod.
Lasers with emission wavelengths longer than 1.4 μm are often called “eye-safe” because the light in that wavelength range is strongly absorbed in the eye’s cornea and lens and, therefore, cannot reach the significantly more sensitive retina. The quality of “eye-safe” depends not only on the emission wavelength but also on the power level and the optical intensity which can reach the eye. Eye-safe lasers are essential in 1535nm laser for ranging and radar cases where light must be transmitted over substantial distances in the open air. Examples are laser rangefinders and free-space optical communications.
1535nm Er Glass Laser as Laser Illumination for operating with a SWIR Camera
Non-Q-Switch (free-running mode);
Single Pulse Energy: 2mJ;
Repetition Frequency: 70Hz
1535nm Er Glass Laser case (2)

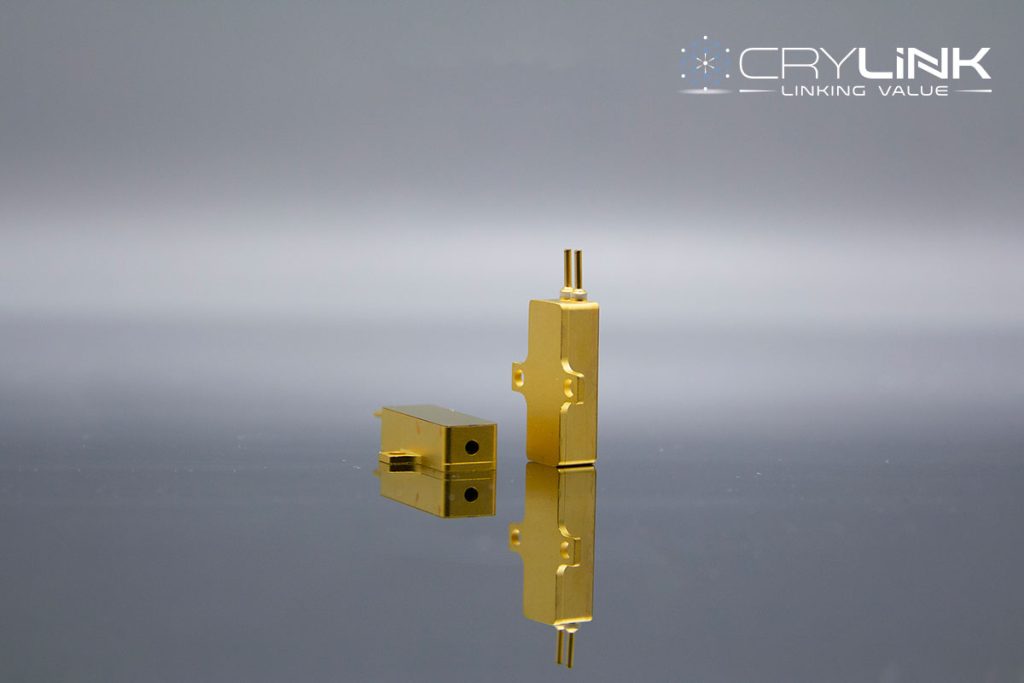

Product: 1535nm Er Glass laser Module;
No.: CL-LF300-B;
Single Pulse Energy (μJ): ≥300uJ
- Beam quality near diffraction limit
- Small volume
- Low power consumption,
- No temperature control
- Open and be used
- High reliability
- Good stability
- Wide temperature range
- Laser ranging
- Laser irradiation
- Laser radar
- Target recognition
- Laser medical treatment
- Optical fiber communication
| Eye-safe compact scanning LIDAR technology Optics and Lasers in Engineering Volume 45, Issue 8, August 2007, Pages 898-906 |
| Yb3+ ,Er3+ codoped LaLiP4O12 glass: a new eye-safe laser at 1535 nm Journal of Alloys and Compounds 300–301 (2000) 123–130 |
| Monolithic thermally bonded Er3+,Yb3+:glass,Co2+:MgAl2O4 microchip lasers Optics Communications356(2015)166–169 |
| Ultra compact eye-safe laser for range finding |
| Monolithic 1.5 μm Er,Yb:GdAl3(BO3)4 eye-safe laser Optical Materials 88 (2019) 60–66 |
| Eye safe solid state lasers for remote sensing and coherent laser radar 2005 IEEE LEOS Annual Meeting Conference Proceedings |
| Optimization of passively Q-switched Er:glass laser CLEO/Pacific Rim 2003. The 5th Pacific Rim Conference on Lasers and Electro-Optics (IEEE Cat. No.03TH8671) |
| Room-Temperature CW Laser Operation at 4.55 pm (Eye-Safe Range) of Yb,Er and Yb,Er,Ce:Ca2Al2 Si07 Crystals IEEE JOURNAL OF QUANTUM ELECTRONICS, VOL. 32, NO. 11, NOVEMBER |
| Er3+ and Yb3+ doped active media for ‘eye safe’ laser systems Journal of Alloys and Compounds Volumes 300–301, 12 April 2000, Pages 398-406 |
| Eye-safe DPSSL-based TOF-camera for geodesy 2016 International Conference Laser Optics (LO) |
| Diode pumped lasers at five eye-safe wavelengths IEEE JOURNAL OF QUANTUM ELECTRONICS, VOL. 28. NO. 4, APRIL 199 |
| Flip chipped InGaAs photodiode arrays for gated imaging with eye-safe lasers TRANSDUCERS 2007 – 2007 International Solid-State Sensors, Actuators and Microsystems Conference |
| Ytterbium and Erbium Co-doped rare-earth Aluminum Borate Crystals as new materials for eye-safe lasers: flux growth and characterization |
| High power and narrow lateral far-field divergence 1.5-μm eye-safe pulsed laser diodes with flared waveguide Appl.Phys.B86,275–278(2007) |
| High-repetition-rate eye-safe optical parametric oscillator intracavity pumped by a diode-pumped Q-switched Nd:YVO4 laser Appl.Phys.B76,263–266(2003) |
| Luminescent and laserproperties of Yb–Er:GdCa4O(BO3)3: a new crystal for eye-safe 1.5 µm lasers Appl.Phys.B79,577–581(2004) |
| Experimental Discussion on Eye-safe 1.54 μm Photon Counting Lidar Using Avalanche Photodiode Appl. Phys. B 70, 163–168 (2000) / Digital Object Identifier (DOI) 10.1007/s003409900108 |
If you can’t find the Literature you want, Contact us to get the PDF Get the Literature
Erbium Glass Eye Safe Laser — 202012/21 — CRYLINK
Er Glass Laser Technical Parameter

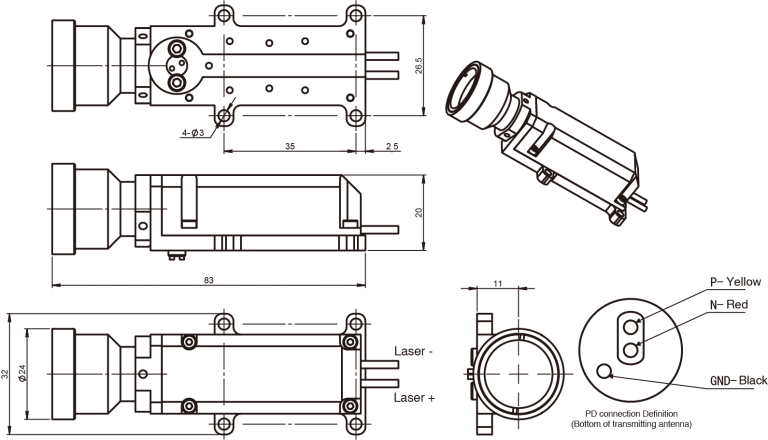

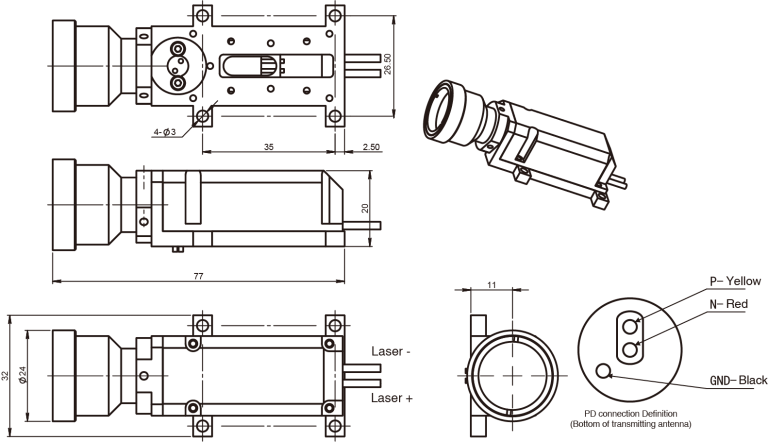

| Model | CL-LF-500-30X | CL-LF-1000-30X |
| Optical Parameters | ||
| Wavelength (nm) | 1535 | |
| Repetition frequency (Hz) | 10 | 5 |
| Output energy (µJ) | 500 | 1000 |
| Pluse width (ns) | 6 | 7 |
| Pump width (ms) | ≤2.5 | |
| Light spot diameter (mm) | 14 | 16 |
| Divergence angle Typ. (mrad) | 0.28 | 0.25 |
| Lens magnification | 30X | |
| System Parameters | ||
| Working current (A) | 20 | 30 |
| Working voltage (V) | 1.8 | |
| Vibration | 5Hz, 2.5g | |
| Shock | Axial direction 100g, 1ms | |
| Working temperature (℃) | -40~65 | |
| Storage temperature (℃) | -55~80 | |
| Storage Humidity | ≤85% | |
| Working life (H) | ≥5000 | |

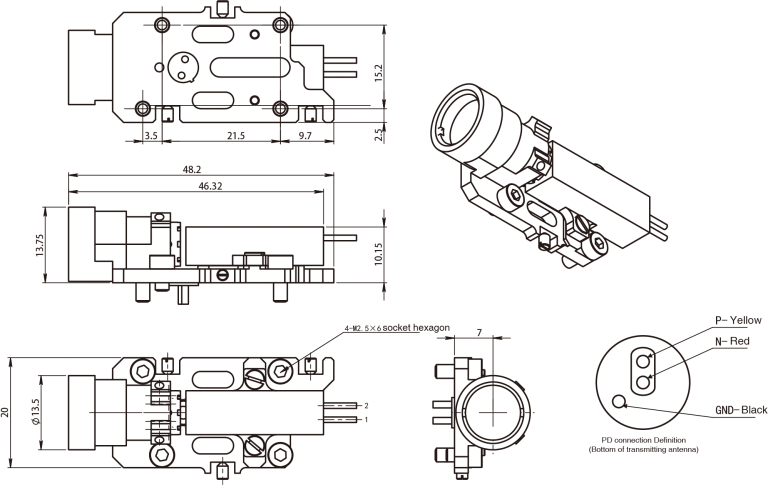

| Model | CL-LF-100-25X | CL-LF-200-25X | CL-LF-300-25X |
| Optical Parameters | |||
| Wavelength (nm) | 1535 | ||
| Repetition frequency (Hz) | 10 | ||
| Output energy (µJ) | 100 | 200 | 300 |
| Pluse width (ns) | 5 | ||
| Pump width (ms) | ≤2 | ≤2 | ≤2.5 |
| Light spot diameter (mm) | 7.5 | 8 | 8.5 |
| Divergence angle Typ. (mrad) | 0.55 | 0.5 | 0.45 |
| Lens magnification | 25X | ||
| System Parameters | |||
| Working current (A) | 8 | 10 | 12 |
| Working voltage (V) | 1.8 | ||
| Vibration | 5Hz, 2.5g | ||
| Shock | Axial direction 100g, 1ms | ||
| Working temperature (℃) | -40~65 | ||
| Storage temperature (℃) | -55~80 | ||
| Storage Humidity | ≤85% | ||
| Working life (H) | ≥5000 | ||

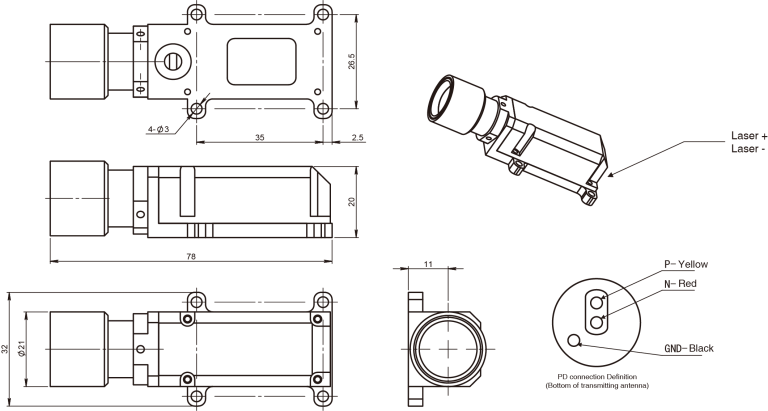

| Model | CL-HF-40-40X | CL-HF-20-40X | CL-HF-10-40X | CL-HF-5-40X |
| Optical Parameters | ||||
| Wavelength (nm) | 1535 | |||
| Repetition frequency (kHz) | 1 | 2.5 | 5 | 10 |
| Output energy (µJ) | 40 | 20 | 10 | 5 |
| Pluse width (ns) | 5 | 6 | 8 | 10 |
| Light spot diameter (mm) | 12 | |||
| Divergence angle Typ. (mrad) | 0.4 | 0.4 | 0.45 | 0.45 |
| Lens magnification | 40X | |||
| System Parameters | ||||
| Working current (A) | 6 | |||
| Working voltage (V) | 1.8 | |||
| Vibration | 5Hz, 2.5g | |||
| Shock | Axial direction 100g, 1ms | |||
| Working temperature (℃) | -40~65 | |||
| Storage temperature (℃) | -55~80 | |||
| Storage Humidity | ≤85% | |||
| Working life (H) | ≥5000 | |||

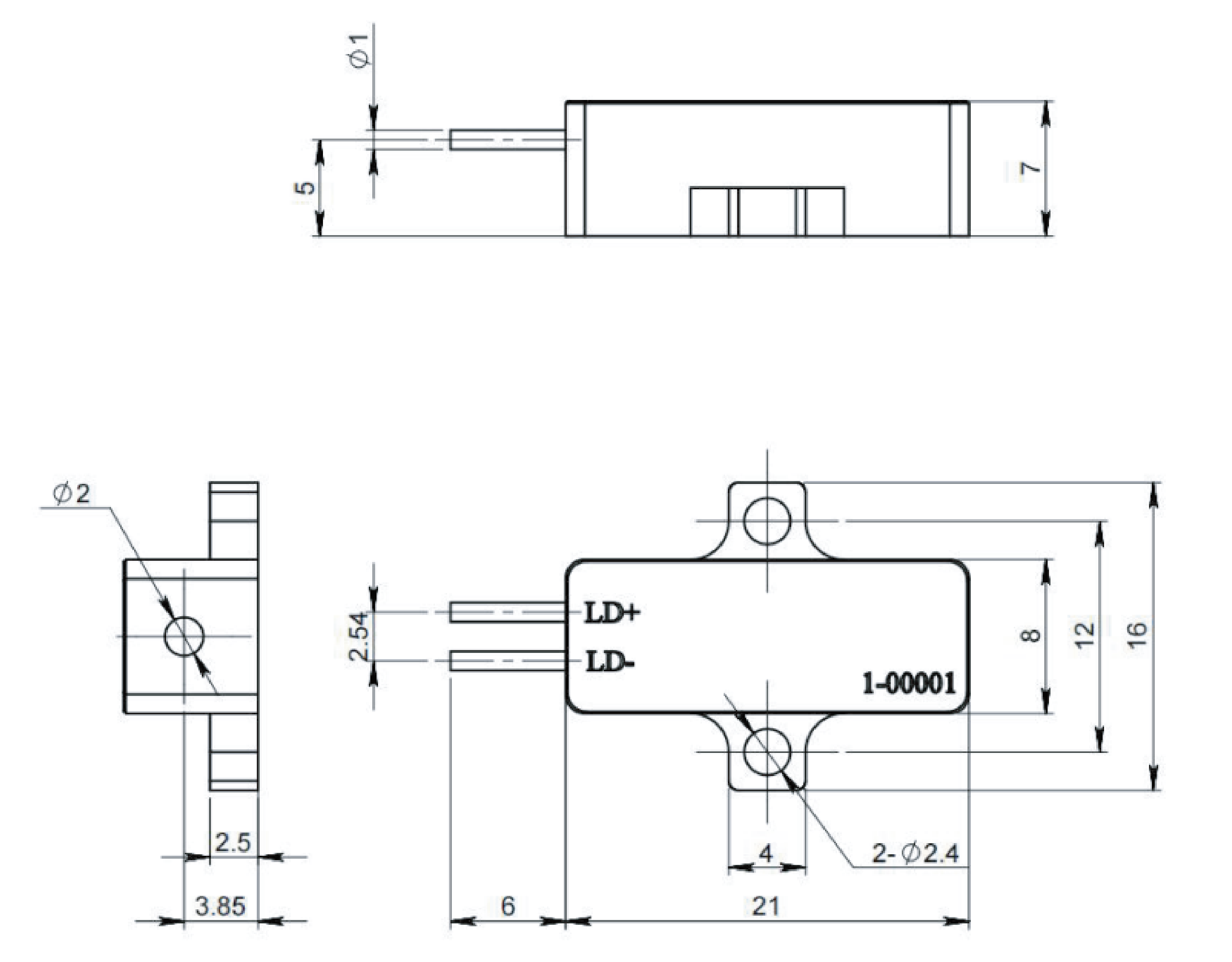

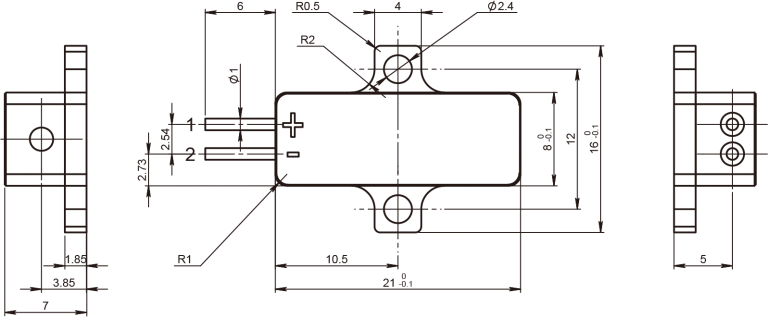

| Items | Value | ||||

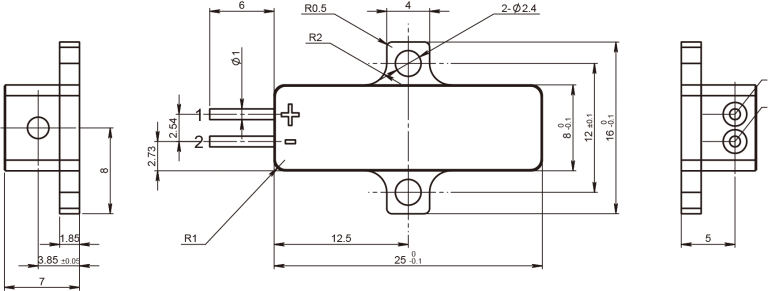

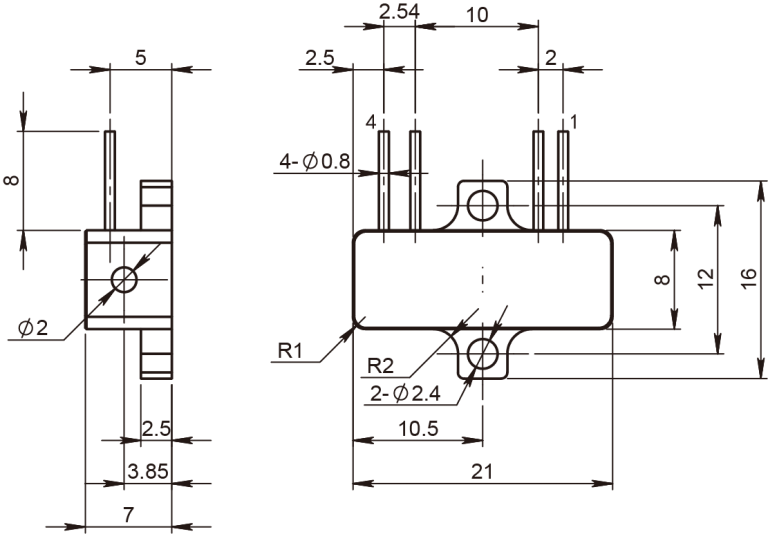

| Model | CL-LF100-B | CL-LF200-B | CL-LF300-B | CL-LF100-B-PIN* | CL-LF200-B-PIN* |
| Wavelength | 1535nm | ||||
| Output energy | 100μJ | 200μJ | 300μJ | 100μJ | 200μJ |
| Pluse width | ≤5ns | ||||
| Repetition Rate | 10Hz | ||||
| Divergence angle Typ.(mrad) | 10mrad | ||||
| Beam Mode | TEM00 | ||||
| Working current | 7A | 10A | 12A | 8A | 10A |
| Weigth | 7g | 10g | 12g | 7.5g | 7.5g |
| Size | 21×8×7mm3 | 25×8×7mm3 | 25×8×7mm3 | 21×8×7mm3 | 21×8×7mm3 |
| Working temperature | -40℃~+65℃ | ||||
| Storage temperature | -55℃~+80℃ | ||||
Note: *This model has a built-in PIN, and the PIN amplitude is 2V@50Ω impedance

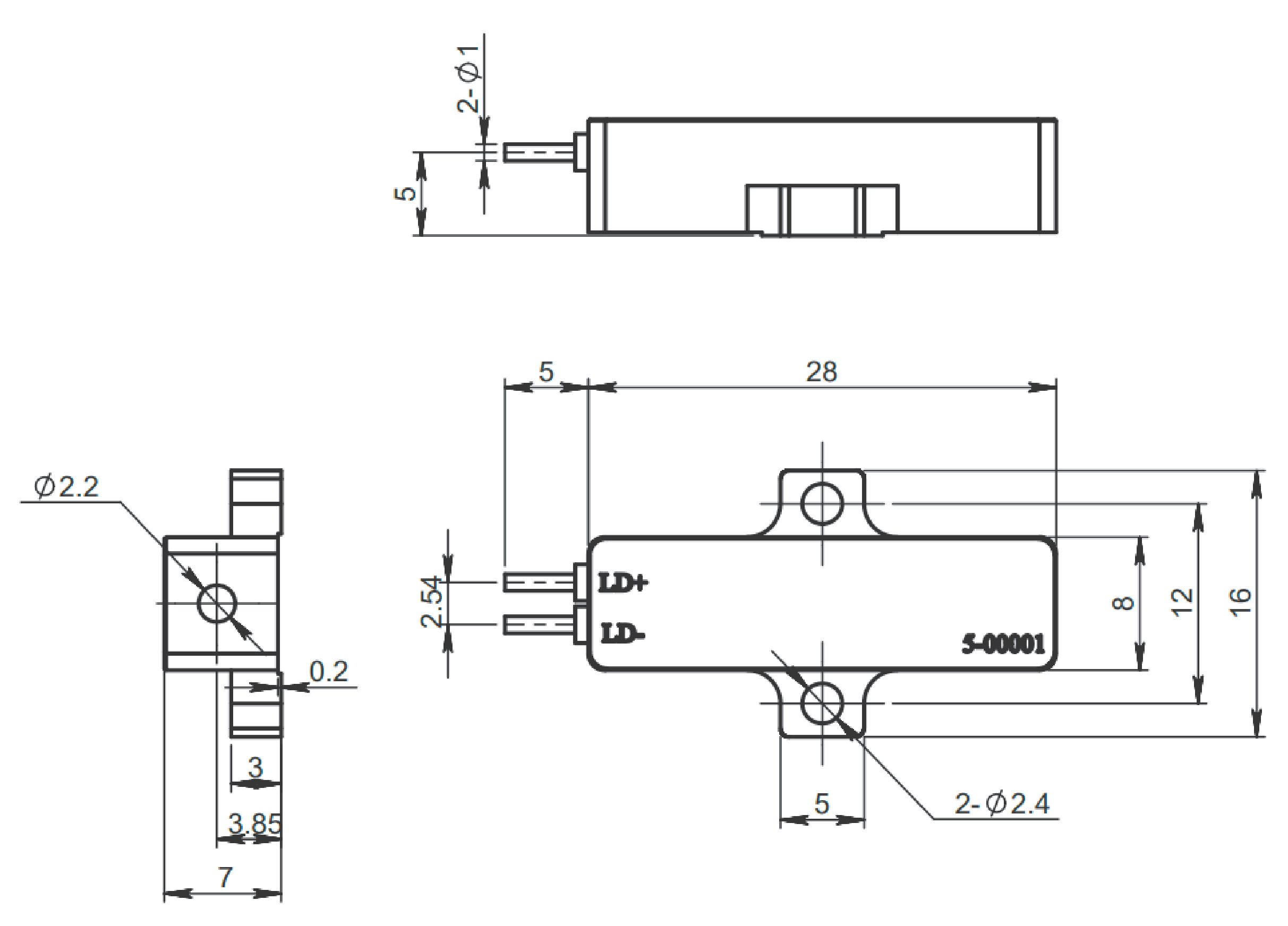

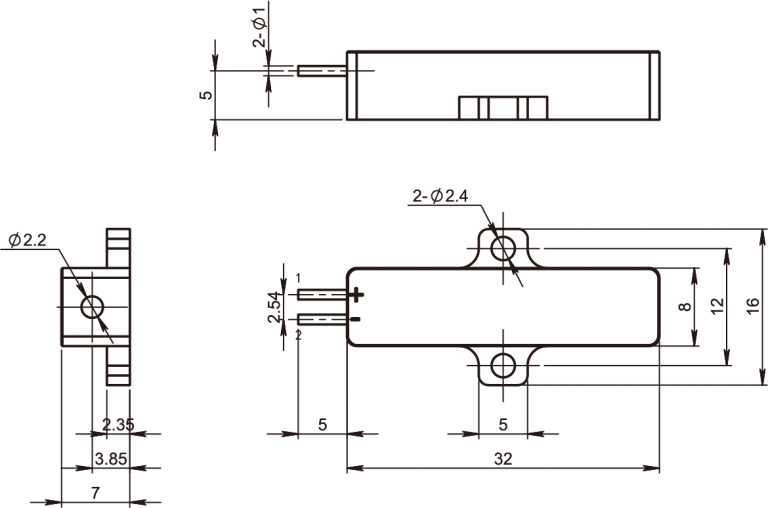

| Items | Value | ||

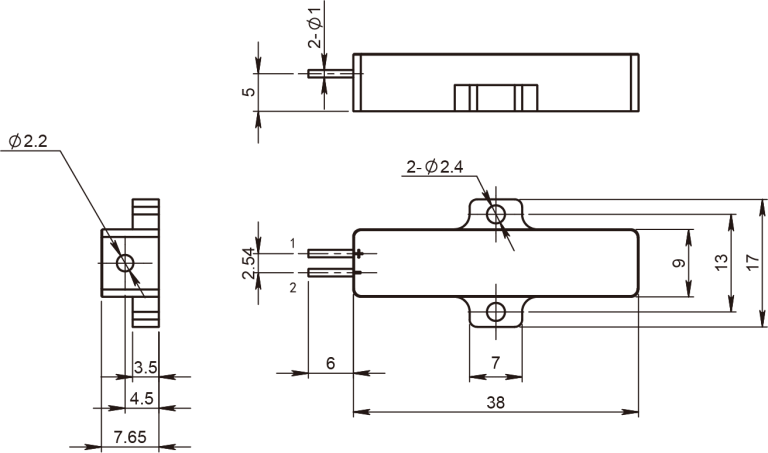

| Model | CL-LF500-B | CL-LF-800-B | CL-LF1000-B |
| Wavelength | 1535nm | ||
| Output energy | 500μJ | 800μJ | 1000μJ |
| Pluse width | ≤6ns | ≤7ns | ≤7ns |
| Repetition Rate | 10Hz | 10Hz | 5Hz |
| Divergence angle Typ.(mrad) | 8mrad | 7mrad | 7mrad |
| Beam Mode | TEM00 | ||
| Working current | 20A | 30A | 30A |
| Weigth | 13g | 20g | 20g |
| Size | 32×8×7mm3 | 38×9×7.7mm3 | 38×9×7.7mm3 |
| Working temperature | -40℃~+65℃ | ||
| Storage temperature | -55℃~+80℃ | ||

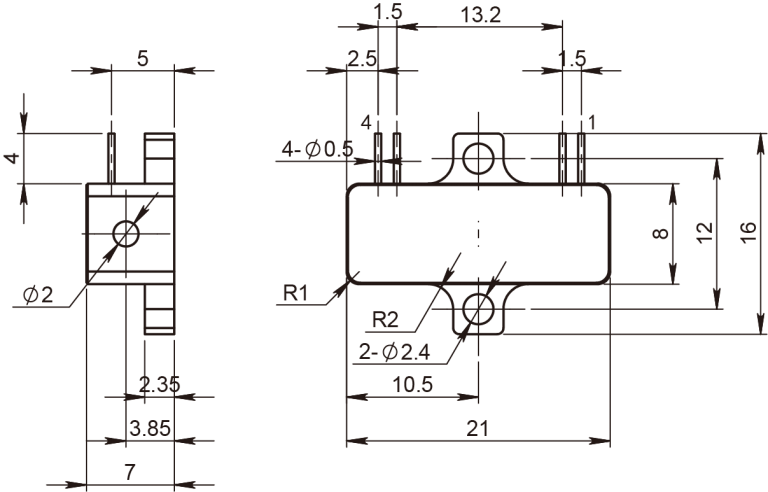

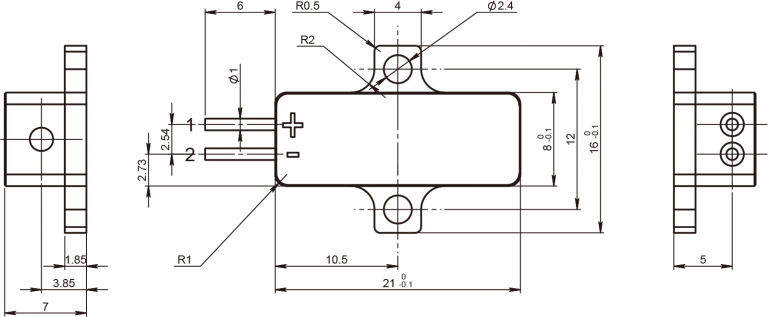

| Items | Value | |||||||
| Model | CL-HF40-B | CL-HF20-B | CL-HF10-B | CL-HF5-B | CL-HF40-B-PIN* | CL-HF20-B-PIN* | CL-HF10-B-PIN* | CL-HF5-B-PIN* |
| Wavelength | 1535nm | |||||||
| Output energy | 40μJ | 20μJ | 10μJ | 5μJ | 40μJ | 20μJ | 10μJ | 5μJ |
| Pluse width | ≤5ns | ≤6ns | ≤8ns | ≤10ns | ≤5ns | ≤6ns | ≤8ns | ≤10ns |
| Repetition Rate | 1KHz | 2.5KHz | 5KHz | 10KHz | 1KHz | 2.5KHz | 5KHz | 10KHz |
| Divergence angle Typ.(mrad) | ≤16mrad | ≤17mrad | ≤18mrad | ≤20mrad | ≤16mrad | ≤17mrad | ≤18mrad | ≤20mrad |
| Working voltage | 2V | 2V | 2V | 2V | – | – | – | – |
| Spot diamteter | 0.3mm | 0.3mm | 0.3mm | 0.3mm | – | – | – | – |
| Directivity | <0.2° | <0.2° | <0.2° | <0.2° | – | – | – | – |
| Beam Mode | TEM00 | |||||||
| Working current | 5A | |||||||
| Weigth | ≤10g | ≤10g | ≤10g | ≤10g | 7g | 7g | 7g | 7g |
| Size | 21×8×7mm3 | |||||||
| Working temperature range | -40℃~+65℃ | |||||||
| Storage temperature range | -55℃~+80℃ | |||||||
Note: *This model has a built-in PIN, and the PIN amplitude is 2V@50Ω impedance
