1064nm Nd:YAG Laser For Medical Testing
1064nm 2ns Microchip Laser System of MCA Series
MCA series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure without tail, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application.
| Model | Repetition Frequency (kHz) | Average Power (mW) | Energy (uJ) | Pulse Width (ps) |
| CL1064-100Hz-200μJ-MCA020 | 0.1 | 20 | 200 | 2000 |
| CL1064-100Hz-1200μJ-MCA021 | 0.1 | 120 | 1200 | 2000 |
| CL1064-1KHz-150μJ-MCA022 | 1 | 150 | 150 | 2000 |
| CL1064-2.5KHz-130μJ-MCA023 | 2.5 | 325 | 130 | 2000 |
| CL1064-5KHz-50μJ-MCA024 | 5 | 250 | 50 | 1500 |
| CL1064-10KHz-35μJ-MCA025 | 10 | 350 | 35 | 1500 |
| CL1064-20KHz-35μJ-MCA026 | 20 | 700 | 35 | 1500 |
- Pulse width up to 1.5ns
- Pulse energy up to 200 μJ
- External pump source fiber pump pulse energy can reach 1.2mJ
- Repetition frequency up to 20kHz
- Beam mode is TEM00
- Fully sealed design, high reliability
- Lidar
- Optical Parametric Oscillating Pump Source
- Laser Ranging
- Laser induced breakdown spectroscopy
- Atmospheric monitoring
- Laser ultrasonic inspection
- Optical metrology
- Biomedical Science
- Laser ionization mass spectrometry
- Laser-induced fluorescence
- 3D scanning and imaging
1064nm Nd:YAG Laser For Medical Aesthetics
Microchip Laser System
1064nm 550ps Microchip Laser System of MCB Series
MCB series microchip laser products have very ideal narrow pulse width, but also can achieve high single pulse energy. The product is a passive Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. The superior product performance index makes its application range very wide, especially in laser measurement, which can meet many different kinds of measurement needs, and also has excellent performance in the application of laser seeds.
| Model | Repetition Frequency | Average Power | Output Energy | Pulse Width |
| CL1064-100Hz-170μJ-MCB010 | 0.1kHz | 17mW | 170uJ | 550ps |
| CL1064-100Hz-360μJ-MCB011 | 0.1kHz | 36mW | 181uJ | 550ps |
| CL1064-1KHz-130μJ-MCB012 | 1kHz | 130mW | 130uJ | 550ps |
- Pulse width up to 500ps
- Pulse energy up to 170μJ
- External pump source fiber pump pulse
- Charge energy up to 360μJ
- Maximum repetition frequency up to 1kHz
- Beam mode is TEM00
- Fully sealed design, high reliability
- Seed source
- Micromachining
- Biomedical Science
- Laser ultrasonic inspection
- Laser ionization mass spectrometry
- Non-linear optical measurement
- Laser-induced fluorescence
- Laser induced breakdown spectroscopy
1064nm 750ps Microchip Laser System of MCC Series
MCC series microchip laser products have very ideal narrow pulse width, but also can achieve high single pulse energy. The product is a passive Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. The superior product performance index makes its application range very wide, especially in laser measurement, which can meet many different kinds of measurement needs, and also has excellent performance in the application of laser seeds. We can also provide 1064nm and 532nm isolators.
| Model | Repetition Frequency | Average Power | Output Energy | Pulse Width |
| CL1064-100Hz-500μJ-MCC015 | 0.1kHz | 50mW | 500uJ | 750ps |
| CL1064-500Hz-300μJ-MCC016 | 0.5kHz | 150mW | 300uJ | 750ps |
| CL1064-1KHz-80μJ-MCC017 | 1kHz | 80mW | 80uJ | 750ps |
| CL1064-5KHz-70μJ-MCC018 | 5kHz | 350mW | 70uJ | 750ps |
| CL1064-10KHz-40μJ-MCC019 | 10kHz | 400mW | 40uJ | 750ps |
- Seed source
- Micromachining
- Laser ionization mass spectrometry
- Laser ultrasonic inspection
- Optical Parametric Oscillating Pump Source
- Biomedical Science
- Laser-induced fluorescence
- Laser induced breakdown spectroscopy
- Seed source
- Micromachining
- Biomedical Science
- Laser ultrasonic inspection
- Laser ionization mass spectrometry
- Non-linear optical measurement
- Laser-induced fluorescence
- Laser induced breakdown spectroscopy
1064nm 350ps Microchip Laser System of MCD Series
MCD series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure and tailless, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application. This series of lasers have great advantages in seed light, laser micromachining, laser measurement and other applications. We also provide 1064nm and 532nm isolators.
| Model | Repetition Frequency | Average Power | Output Energy | Pulse Width |
| CL1064-10KHz-2.5μJ-MCG006 | 10kHz | 25mW | 3uJ | 550ps |
| CL1064-50KHz-2μJ-MCG007 | 50kHz | 100mW | 2uJ | 550ps |
| CL1064-50KHz-5μJ-MCG008 | 50kHz | 250mW | 5uJ | 550ps |
| CL1064-100KHz-1μJ-MCG009 | 100kHz | 100mW | 1uJ | 550ps |
| CL1064-100KHz-3μJ-MCG010 | 100kHz | 300mW | 3uJ | 550ps |
- Maximum repetition frequency up to 100KHz
- Pulse width up to 450ps
- Pulse energy up to 2.5µJ
- Single longitudinal mode
- Beam mode is TEM00
- Laser processing
- Seed source
- Analytical Instruments
- Biological photomolecule
1064nm 550ps Microchip Laser System of MCG Series
MCG series high repetition rate microchip laser series is a semiconductor-pumped passive Q-switched solid-state laser with stable energy, narrow pulse width, good beam quality, and single longitudinal mode operation. This series of laser adopts hermetically sealed design, small size, easy installation and integration, and is widely used in the laser micromachining and analysis instrument industry. Our company can provide users with isolators and power amplification solutions that match the wavelength.
| Model | Repetition Frequency | Average Power | Output Energy | Pulse Width |
| CL1064-100Hz-150μJ-MCD013 | 0.1kHz | 15mW | 150uJ | 350ps |
| CL1064-100Hz-500μJ-MCD014 | 0.1kHz | 50mW | 500uJ | 350ps |
| CL1064-500Hz-130μJ-MCD015 | 0.5kHz | 65mW | 130uJ | 350ps |
| CL1064-1KHz-100μJ-MCD016 | 1kHz | 100mW | 100uJ | 350ps |
- Pulse width up to 300ps
- Pulse energy up to 150 μJ
- External pump source fiber pump pulse energy can reach 360μJ
- Maximum repetition frequency up to 1kHz
- Beam mode is TEM00
- Fully sealed design, high reliability
- Seed source
- Laser micromachining
- Non-linear optical measurement
- Laser-induced fluorescence
- Laser ionization mass spectrometry
- Fluorescence lifetime measurement
1064nm 350ps Microchip Laser System of MCH Series
MCH series high repetition rate microchip laser series can achieve high repetition rate while the pulse width is less than 300ps. The product is a passively Q-switched solid-state laser based on semiconductor pump, with stable energy, good beam quality and single longitudinal mode operation. The laser is designed with full seal, small size, convenient for user installation and integration. The system supports internal and external triggering and can be used for secondary development.
| Model | Repetition Frequency | Average Power | Output Energy | Pulse Width |
| CL1064-1KHz-32μJ-MCH010 | 1kHz | 32mW | 32uJ | 350ps |
| CL1064-5KHz-15μJ-MCH011 | 5kHz | 75mW | 15uJ | 300ps |
| CL1064-10KHz-8μJ-MCH012 | 10kHz | 80mW | 8uJ | 300ps |
| CL1064-20KHz-5μJ-MCH013 | 20kHz | 100mW | 5uJ | 300ps |
- Pulse width up to 280ps
- Pulse energy up to 32µJ
- Maximum repetition frequency up to 20KHz
- Beam mode is TEM00
- Laser micromachining
- Seed source
- Ultrasound imaging
- analytical chemistry
- Time-resolved Raman spectroscopy
- Biophotonics
Narrow Linewidth Laser
1064nm Narrow Linewidth Semiconductor Laser
| Model | CL1064-0.5-600mW-NSL(PD)005 | |
| Optical Parameter | Continuous Output Power (mW) | 600 |
| Center Wavelength (nm) | 1064±0.5 | |
| Spectral Width (nm) | ≤0.1 | |
| Characteristics of Wavelength With Temperature (nm/℃) | 0.02 | |
| Characteristics of Wavelength With Current (nm/A) | 0.05 | |
| Electrical Parameter | Threshold Current (A) | 0.19 |
| Operating Current (A) | 1.18 | |
| Operating Voltage (V) | 1.8 | |
| Differential Efficiency (W/A) | 0.6 | |
| PD Current (µA) | 200-2000 | |
| Thermistor Parameters (kΩ/β(25℃)) | 10±5%/3450 | |
| TEC Maximum Current (A) | 2.2 | |
| TEC Maximum Voltage (V) | 8.7 | |
| Optical Fiber Parameter | Fiber Diameter (µm) | 105 |
| Numerical Aperture | 0.22 | |
| Connector | SMA905 | |
| Other Parameter | Operating Temperature (℃) | 10-30 |
| Operating Relative Humidity (%) | 75 | |
| Storage Temperature (℃) | -20~70 | |
| Storage Relative Humidity (%) | 90 | |
| Pin Soldering Temperature，Max (℃) | 250(10 Sec.) |
- Line width <0.1nm
- Temperature drift <0.007nm/℃, VBG wave lock
- Built-in TEC
- Raman spectrometer
- Laser particle size analyzer
- Medical applications
- Up-conversion material

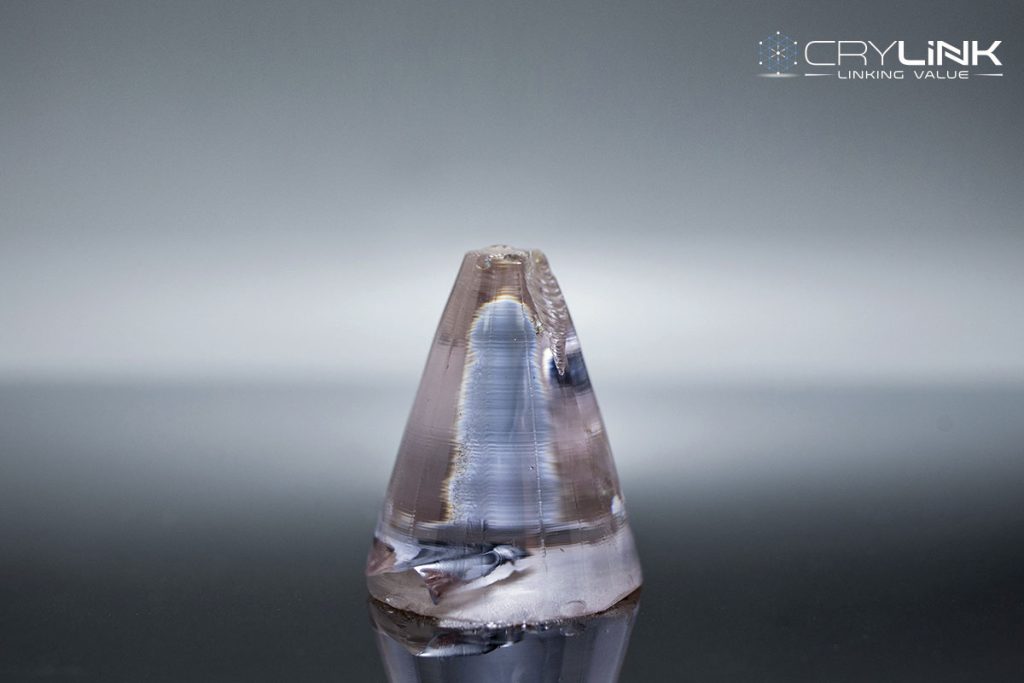

Gain medium - Nd YAG
The working medium of the laser here is doped with trivalent neodymium ions in yttrium aluminum garnet crystal so that near infrared laser with wavelength of 1064nm can be emitted.
- High efficiency
- Low loss
- Reduce the risk of hypopigmentation
- Strong penetrability, and it can treat deeper positions
- laser skin rejuvenation
- Treatment of pigmented skin disease
- Treatment of cutaneous vascular disease
- Treatment skin aging
- Elimination of human pigmented lesions
