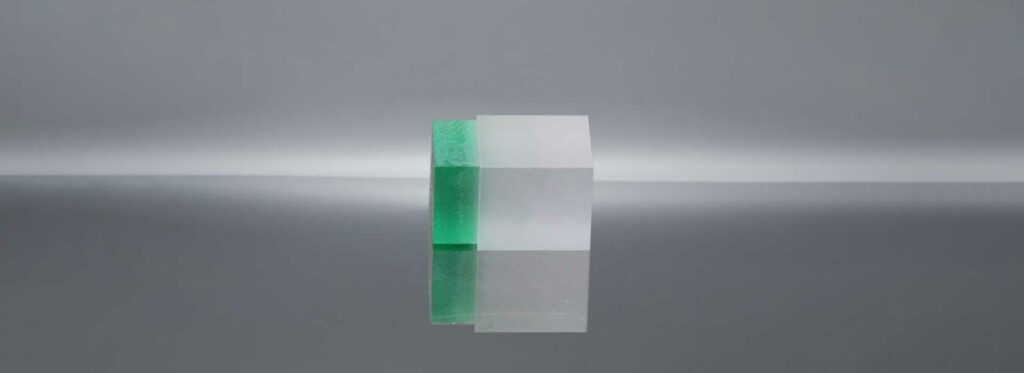

Nd:YVO4 crystal case (5) – 3×3×5 mm for 1064 nm laser January 5, 2023 By Ring Leave a Comment Requirements ProductSpecification/mmNd:YVO43×3×5 mm Process Indicators Nd3+:YVO4 crystals3 mm × 3 mm aperture5-mm longa-cutOrientation Tolerence: < 0.5°Thickness/Diameter Tolerance: ±0.1 mmSurface Flatness: <λ/[email protected]Wavefront Distortion(WFD): <λ/[email protected]Surface Quality: 20/10Parallel: 30〞Perpendicular: 15ˊClear Aperture: >90%Chamfer: <0.2×45°S1&S2: [email protected] 808 nm @ 1064 nm Pictures
