The Brilliance of YVO4 Crystals: A Versatil e Gain Medium for Solid State Lasers

Introduction: Unveiling the Splendor of YVO4 Crystals

In the vast and fascinating realm of photonic technology, YVO4 Crystals distinguish themselves as a versatile and potent medium for solid-state lasers. These gems of modern laser technology, renowned for their unparalleled performance, extensive applications, and many advantages over traditional gain materials, have revolutionized the laser industry. The intricate journey of YVO4 Crystals, from their atomic configuration to their application across various sectors, is nothing short of intriguing.

Understanding the YVO4 Crystal: An Atomic Perspective

The core essence of YVO4 Crystals lies in their atomic structure. These crystals, formally known as Yttrium Orthovanadate, comprise three fundamental elements: Yttrium (Y), Vanadium (V), and Oxygen (O). The YVO4 Crystal’s unique composition facilitates an exceptional crystal lattice configuration. As a result, these crystals display an array of superior properties. For instance, they offer high thermal conductivity, which is vital in maintaining beam quality. They also provide a large stimulated emission cross-section, an integral factor enabling efficient energy conversion in diode-pumped solid-state lasers.

YVO4 crystals
Figure 1. YVO4 crystals

The Power Behind YVO4 Crystals: Exceptional Optical Properties

Delving deeper into the optical prowess of YVO4 Crystals, we find a plethora of properties that collectively contribute to their exceptional performance in solid-state lasers. The optical behavior of these crystals is primarily driven by the unique interplay of their atomic composition and crystal lattice structure, leading to a set of exceptional characteristics that are instrumental in the function of lasers.

Perhaps the most significant of these characteristics is their high damage threshold. In the context of lasers, the damage threshold is a measure of the maximum light intensity that a material can endure before its properties begin to degrade, leading to loss of performance or even complete failure. Having a high damage threshold means that YVO4 Crystals can handle intense laser operations without a hitch. They can withstand the high-energy environments of solid-state lasers without compromising their structural integrity or optical properties. This durability ensures the longevity and consistent performance of lasers incorporating these crystals, making them highly reliable for various critical applications.

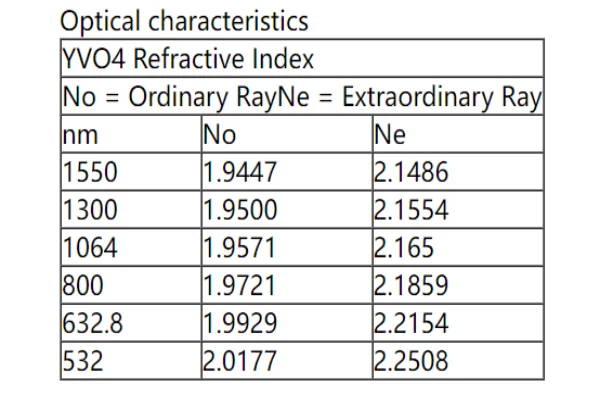

Optical characteristics
Figure 2. Optical characteristics

Accompanying their robustness is the impressive birefringence exhibited by YVO4 Crystals. Birefringence, also known as double refraction, is an optical property in which a material refracts light in two distinct rays. It is a fundamental property for the polarization of light, which is essential in laser technology. The process of polarization is like sieving light, where birefringence allows only light waves oscillating in a specific direction to pass through. The result is a polarized light beam that can travel with minimal interference, leading to enhanced precision and efficiency in laser operations. The high birefringence of YVO4 Crystals therefore contributes significantly to the superior performance of lasers incorporating these crystals.

In addition to their high damage threshold and birefringence, YVO4 Crystals also demonstrate high absorption and emission cross-sections. In the realm of lasers, these cross-sections represent the probability of light-matter interactions that underpin the laser operation. The absorption cross-section quantifies how effectively the medium can absorb pump light, converting it into excited states within the atoms of the crystal. The emission cross-section, on the other hand, determines how efficiently these excited states can relax, emitting their energy as the coherent light that forms the laser beam.

YVO4 Crystals have notably high absorption cross-sections, particularly at the wavelengths commonly used for diode pumping. This high absorption allows the crystals to effectively utilize the pump light, reducing wastage and improving the overall energy efficiency of the laser system. Furthermore, the large emission cross-section of YVO4 Crystals allows for rapid transitions between energy states, facilitating the quick generation of laser light. This property is particularly beneficial in applications that require high-speed laser operations.

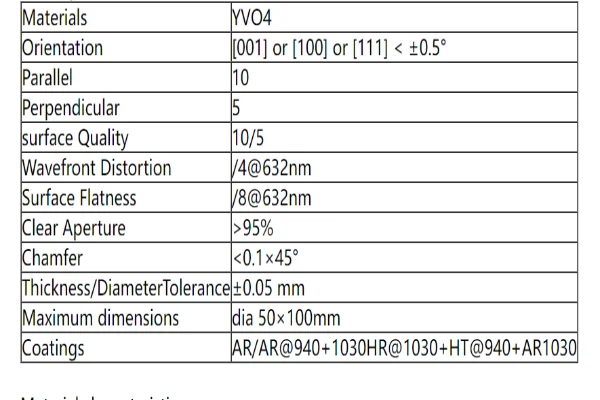

Optical modulator and Main Specification
Figure 3. Optical modulator and Main Specification

The high absorption and emission cross-sections of YVO4 Crystals also mean that they can be used in compact laser designs. As they can absorb and emit light effectively, they require smaller dimensions for a given level of performance compared to other gain materials. This compactness allows for more flexible and innovative designs of laser systems, opening up possibilities for applications where size and form factor are critical considerations.

In conclusion, the optical properties of YVO4 Crystals – their high damage threshold, significant birefringence, and high absorption and emission cross-sections – all contribute to their exceptional performance as a gain medium in solid-state lasers. Each of these properties plays a unique role in the laser operation, collectively ensuring the efficiency, reliability, and versatility of YVO4 Crystals. Whether it’s withstanding high-energy operations, efficiently polarizing light, or facilitating rapid and efficient lasing, YVO4 Crystals exhibit an optical power that sets them apart in the world of laser technology.

Manufacturing Process: Transforming Raw Materials into YVO4 Crystals

The journey of YVO4 Crystals from raw materials to a finished product is a meticulous and rigorous process. This process, known as the Czochralski method, ensures the formation of single-crystal YVO4, which possesses superior optical uniformity and lower scattering losses. The method involves melting raw materials in a crucible and subsequently pulling a seed crystal from the melt at a precise rate. This careful process results in high-quality YVO4 Crystals that enhance the overall performance of laser systems by mitigating energy losses and augmenting the generation of laser light.

The Ideal Medium: YVO4 Crystals in Solid State Lasers

Solid-state lasers, which form the cornerstone of modern laser technology, rely heavily on the gain medium’s characteristics. In this context, YVO4 Crystals serve as the perfect gain medium. Their high thermal conductivity minimizes thermal lensing effects, an essential factor in maintaining beam quality. A high-quality laser beam ensures precision and consistency in laser operations, making it vital for applications demanding high accuracy.

Additionally, YVO4 Crystals exhibit a high stimulated emission cross-section, which is a measure of how effectively a medium can convert pump light into laser light. A large, stimulated emission cross-section allows YVO4 Crystals to deliver high output power with reduced pump power, enabling more efficient and economical operation of solid-state lasers.

solid state laser
Figure 4. solid state laser

YVO4 Crystals versus Traditional Gain Mediums

When compared to traditional gain mediums like Nd:YAG (Neodymium-doped Yttrium Aluminum Garnet), YVO4 Crystals demonstrate superior performance in several aspects. For starters, they offer higher absorption coefficients at pumping wavelengths, a factor that enables more effective utilization of pump light. This property makes lasers built with YVO4 Crystals compact and cost-effective as they require less pump power to produce high output power.

Furthermore, the high thermal conductivity of YVO4 Crystals makes them a prime choice for high-power applications. Unlike other gain mediums that suffer from heat-related issues at high power levels, YVO4 Crystals can efficiently dissipate heat, ensuring stable operation even under high power.

Applications of YVO4 Crystals: Impacting a Broad Spectrum of Industries

The versatility of YVO4 Crystals extends far beyond the laboratory, permeating numerous industries. These crystals power a wide variety of devices and equipment, demonstrating their adaptability and high performance. For instance, in the medical field, they drive surgical lasers used for precise and minimally invasive procedures. In the realm of communication, YVO4 Crystals play a crucial role in optical isolators and modulators, components essential for efficient and reliable data transmission.

In defense and security, these crystals are integral to devices like range finders and target designators. The manufacturing industry also benefits from YVO4 Crystals, which are used in laser marking systems for efficient and accurate marking of products. Regardless of the application, YVO4 Crystals stand out for their superior performance and versatility.

Physical and chemical properties
Figure 5. Physical and chemical properties

Challenges and Solutions: The Path Forward for YVO4 Crystals

Despite the numerous advantages and applications of YVO4 Crystals, they come with their fair share of challenges. Notably, issues concerning crystal growth and doping concentrations demand attention and research. The Czochralski method, although effective, requires careful control of parameters like temperature and pulling rate to avoid defects in the grown crystal.

Furthermore, the concentration of dopant ions within the YVO4 Crystal can significantly influence the laser performance. Overcoming these challenges necessitates continuous research and technological advancements. Nonetheless, the ongoing innovation in the field is progressively making YVO4 Crystals more accessible, efficient, and versatile.

Conclusion: The Future Illuminated by YVO4 Crystals

The brilliance of YVO4 Crystals as a versatile gain medium for solid-state lasers is indisputable. Their superior performance, broad applications, and the potential to outperform other gain materials set them apart in the rapidly evolving field of laser technology. As we continue to explore, experiment, and innovate, the promise of YVO4 Crystals shines brighter than ever. They hold the potential to drive forward significant advancements in various sectors, illuminating the path to a more technologically proficient and advanced future.

Frequently Asked Questions

  • 1. What are YVO4 Crystals? YVO4 Crystals, or Yttrium Orthovanadate crystals, are widely utilized as a gain medium in solid-state lasers. They are renowned for their exceptional optical and thermal properties, which contribute to their high performance in laser systems.
  • 2. How are YVO4 Crystals manufactured? YVO4 Crystals are produced through a meticulous process called the Czochralski method. This method involves melting raw materials in a crucible, followed by carefully pulling a seed crystal from the melt. The result is a high-quality YVO4 Crystal with superior optical uniformity and reduced scattering losses.
  • 3. How do YVO4 Crystals compare to traditional gain mediums? YVO4 Crystals outperform traditional gain mediums like Nd:YAG in various ways. They offer higher absorption coefficients at pumping wavelengths and superior thermal conductivity. These properties make YVO4 Crystals more efficient and suitable for high-power applications.
  • 4. In what industries are YVO4 Crystals applied? YVO4 Crystals find application in various industries, including medicine, communication, defense, and manufacturing. They power a range of devices, from surgical lasers and optical isolators to laser marking systems, demonstrating their versatility and high performance.
  • 5. What challenges do YVO4 Crystals face? YVO4 Crystals face challenges related to their growth and doping concentrations. However, ongoing research and technological advancements are progressively addressing these issues, paving the way for more accessible, efficient, and versatile YVO4 Crystals.
